Professional wall panel & waterproof flooring manufacturer with more than 30 years' experience.

3d Wall Panel - - Vline 1
3d Wall Panel - - Vline 2
3d Wall Panel - - Vline 3
3d Wall Panel - - Vline 4
3d Wall Panel - - Vline 5
3d Wall Panel - - Vline 6
3d Wall Panel - - Vline 7
3d Wall Panel - - Vline 8
3d Wall Panel - - Vline 1
3d Wall Panel - - Vline 2
3d Wall Panel - - Vline 3
3d Wall Panel - - Vline 4
3d Wall Panel - - Vline 5
3d Wall Panel - - Vline 6
3d Wall Panel - - Vline 7
3d Wall Panel - - Vline 8

3d Wall Panel - - Vline

Inquiry

Company Advantages

· Vline 3d wall panel features a blend of aesthetics and functionality.

· The product is stable in performance and long in service life.

· VTC INDUSTRY (WUXI) CO., LTD is well-funded with adequate 3d wall panel supply and thoughtful service.

ACOUSTIC PANNEL 15 TRIMS

600 X 600 mm / 2700 X 600 mm

EN 15102:2019 Clause 4.7 & EN ISO 354

Weighted Sound Absorption Coefficient: αw=0.80 Acoustic

EN 15102:2019 Clause 4.7 & EN ISO 354

Acoustic Absorption Class: Clase B

EN 15102:2019 Clause 4.7 & EN ISO 354

Noise Reduction Coefficient: NRC=0.80

EN 15102:2019 Clause 4.7 & EN ISO 354

Average Absorption Coefficient as (100Hz~5000Hz): 0.68

EN 15102:2019 Clause 4.7 & EN ISO 354

Absorption Class: Class B Class B αw = 0.80; 0.85

EN ISO 11654:1997

Acoustic Absorption Class: Clase B

EN 13501-1:2018

Class D-s2, d0

EN 12149:1998

Approved

EN ISO 17070:2015

Approved

1 (1) (5)

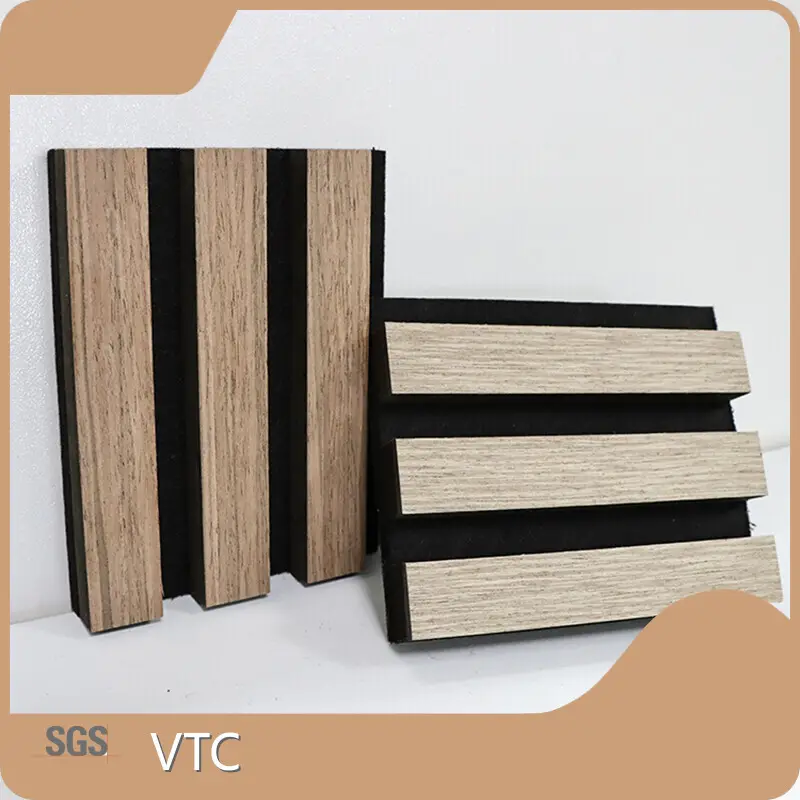

Product description

Acoustic 3D panels with slats offer an aesthetic and functional solution for acoustic treatment in spaces. These panels are designeowith a three-dimensional surface that adds texture and depth to thewalls, providing a visually appealing look.


The acoustic panel features 15 slats and has been designed withthe aim of creating a special ambiance and elevating your homeor office to a higher level. Thanks to its technology with naturawood coating on all three sides, it offers an elegant and high-quality finish that meets the demands of the most sophisticated projects.

In addition to their distinctive appearance, the acoustic 3D panels withslats also serve an important function in sound absorption and diffusionThey are designed to reduce reverberation and control noise levels inthe environment, thereby improving the acoustic quality of the room.


These panels are versatile and can be used in a variety of spacessuch as living rooms, offices, recording studios, auditoriums, andrestaurants. Moreover, their installation is relatively straightforwardand they can be adapted to different designs and configurations.In summary, the acoustic 3D panels with slats not only add anattractive decorative element to spaces but also contribute to creating a more comfortable and pleasant acoustic environment.

1 (1) (6)

Product color

1 (10) (2)
1 (10) (2)
1 (2) (5)

What is the function of Acoustic Panel?

Acoustic panels serve the purpose of achieving sound absorption, with the main obiective of reducing the reverberation time.which is the phenomenon popularly known as echo. By improving the acoustic comfort and reducing noise levels indoors, ourpanels help control the propagation and rebound of sound.


Reverberation refers to the time that sound remains in the envi-ronment after being emitted, and by decreasing this time, betteracoustic quality and increased comfort in the space are achieved.

Product advantages

1 (10) (2)
1 (10) (2)

Applications

1 (5) (4)
1 (5) (4)
1 (4) (4)
1 (4) (4)
1 (2) (5)
1 (2) (5)

Installation

1 (12)
1 (12)
2 (4)
2 (4)


Company Features

· Vline is one of the hot brands of 3d wall panel.

· VTC INDUSTRY (WUXI) CO., LTD has advanced automatic machines and 3d wall panel production inspection equipment. VTC INDUSTRY (WUXI) CO., LTD has shaped substantial manufacturing capacities.

· Vline has made firm decision to be the leading enterprise that focuses on providing the best service. Get more info!


Product Details

We are confident about the exquisite details of 3d wall panel.


Product Comparison

Compared with similar products on the market, the 3d wall panel of VTC has the following advantages.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
